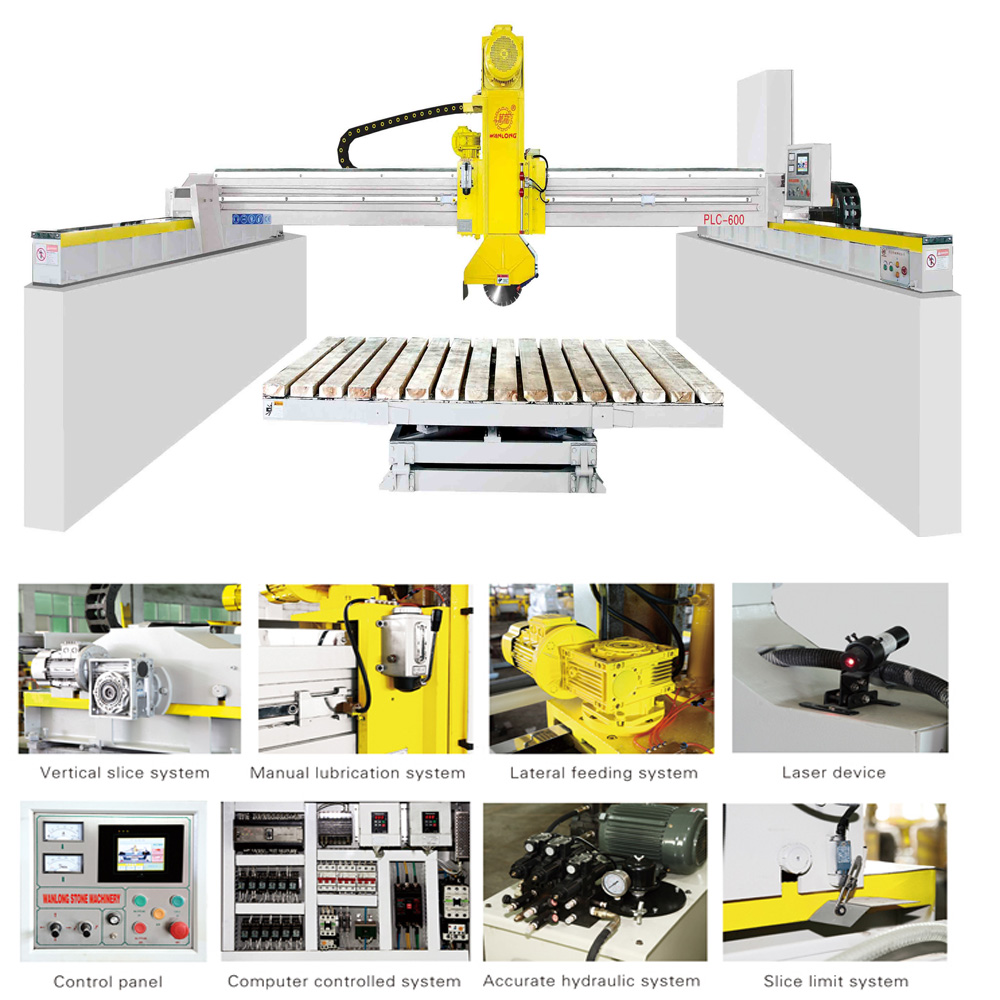

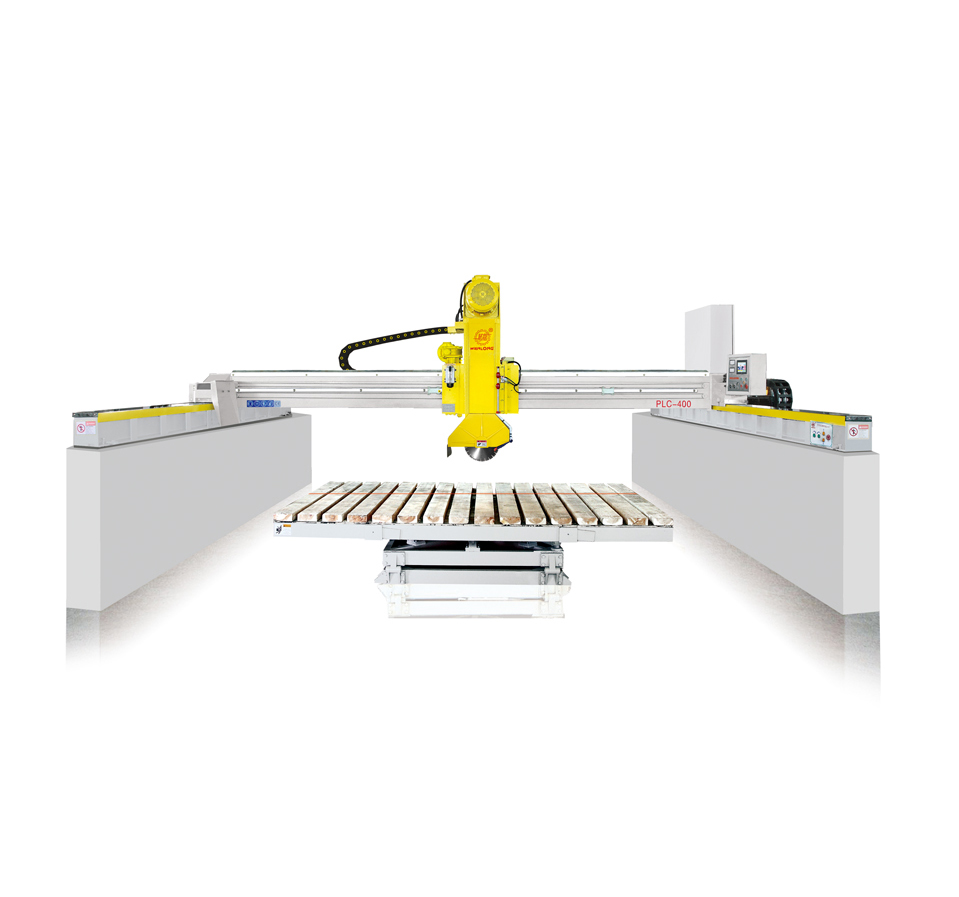

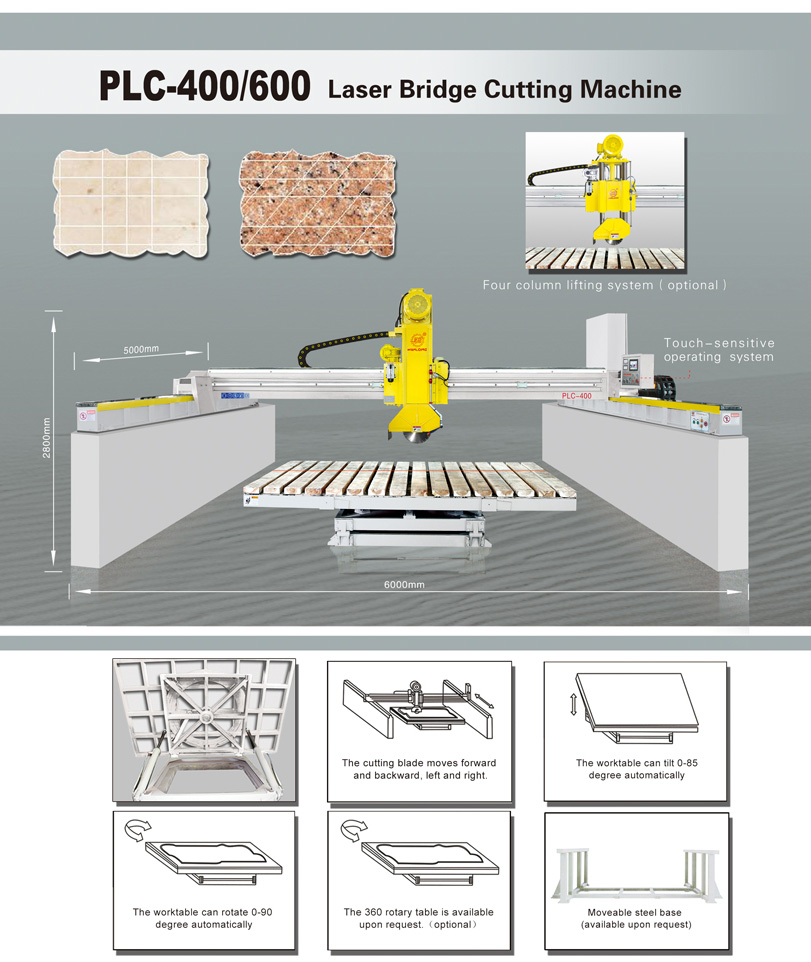

PLC-400/600 Laser Bridge Cutting Machine

Product Features:

The machine is for slab processing, which adopts PLC Control System, Imported Frequency converter, Precise Signing Laser etc for automatic function and guarantee its precise and stable cutting There are model PLC-400 and PLC-600 available to your choice
    PLC-400 PLC-600
Max.diameter of blade mm 350-400 600
Main motor power KW 15 15
Table dimensions(L x W) mm 3200*2000 3200*2000
Table tilting degree 0-85° 0-85°
Table rotating degree 90°-360° 90°-360°
Max.cutting size(L x W x H) mm 3200*2000*80 3200*2000*180
Overall dimensions(L x W x H) mm 6000*5000*2800 6000*5000*2800
Water consumption m³/h 4 4
Approximate Weight Kg 5000 6000
