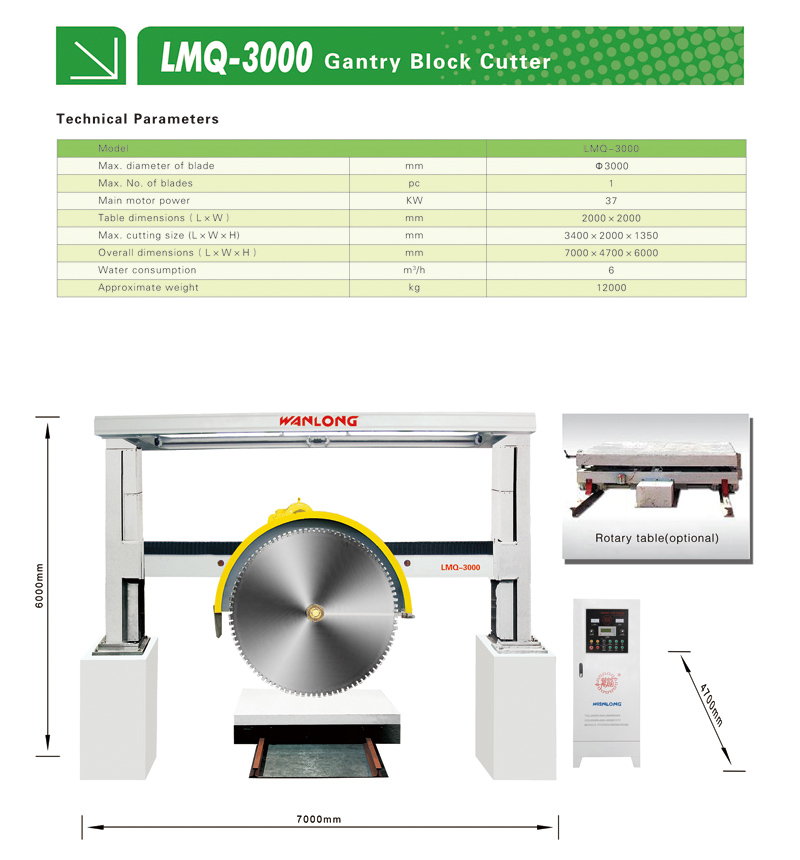

LMQ-2200/2500/3000 Gantry Cutting Machine
Product Features：
The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope Sliding speed of blade on the crossbeam is adjustable
| LMQ-2200 | LMQ-2500 | LMQ-3000 | ||
|---|---|---|---|---|
| Max. diameter of blade | mm | 2200 | 2500 | 3000 |
| Max. No. of blades | pc | 3 | 1 | 1 |
| Recommended Blade Combination | mm | 2200 1600 940 | 2500 | 3000 |
|
Recommend saw blade thickness |
mm | 6.5 | 8 | 8.0 |
| Main motor power | KW | 30 | 30 | 37 |
| Table dimensions ( L x W ) | mm | 2000*2000 | 2000*2000 | 2000*2000 |
| Max. cutting size (L x W x H) | mm | 3200*2000*950 | 3000*2000*1100 | 2500*2000*1350 |
| Overall dimensions ( L x W x H ) | mm | 6600*600*4800 | 6600*6000*4800 | 7000*4700*6000 |
| Water consumption | m3/h | 6 | 6 | 6 |
| Approximate weight | Kg | 9000 | 9000 | 9000 |
