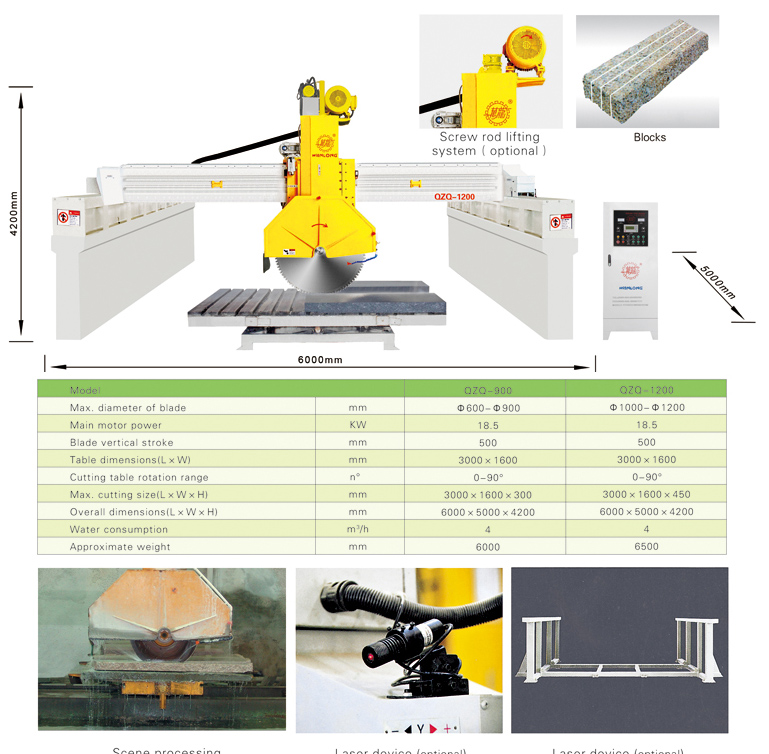

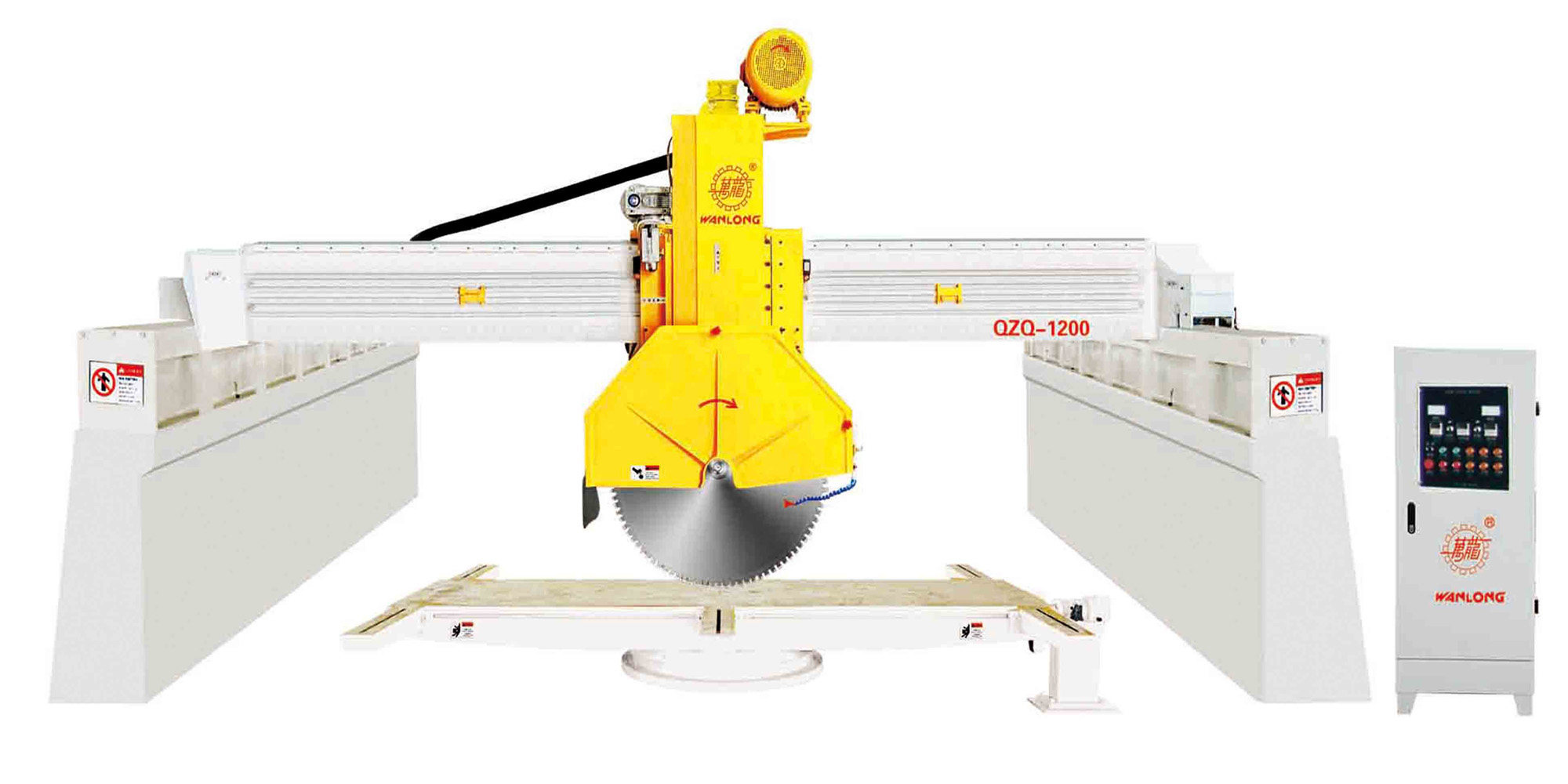

QZQ-900/1200 Bridge Cutting Machine

Product Features:

The headstock of machine moves flexibly in three directions, up & down, left & right, forward & backward (in axis X,Y,Z) It is wide-span structure, equipped with 0-360 degree rotary table The vertical stroke of machine makes speed adjustment easier It is an ideal machine for processing small block, especially for tombstone or monument
    QZQ-900 QZQ-1200
Max. diameter of blade mm 600-900 1000-1200
Main motor power KW 18.5 18.5
Blade vertical stroke mm 500 500
Table dimensions(L x W) mm 3000*2000 3000*2000
Cutting table rotation range 0-360° 0-360°
Max. cutting size(L x W x H) mm 3000*1600*300 3000*1600*450
Overall dimensions(L x W x H) mm 6000*5000*4200 6000*5000*4200
Water consumption m³/h 4 4
Approximate weight Kg 6000 6500
