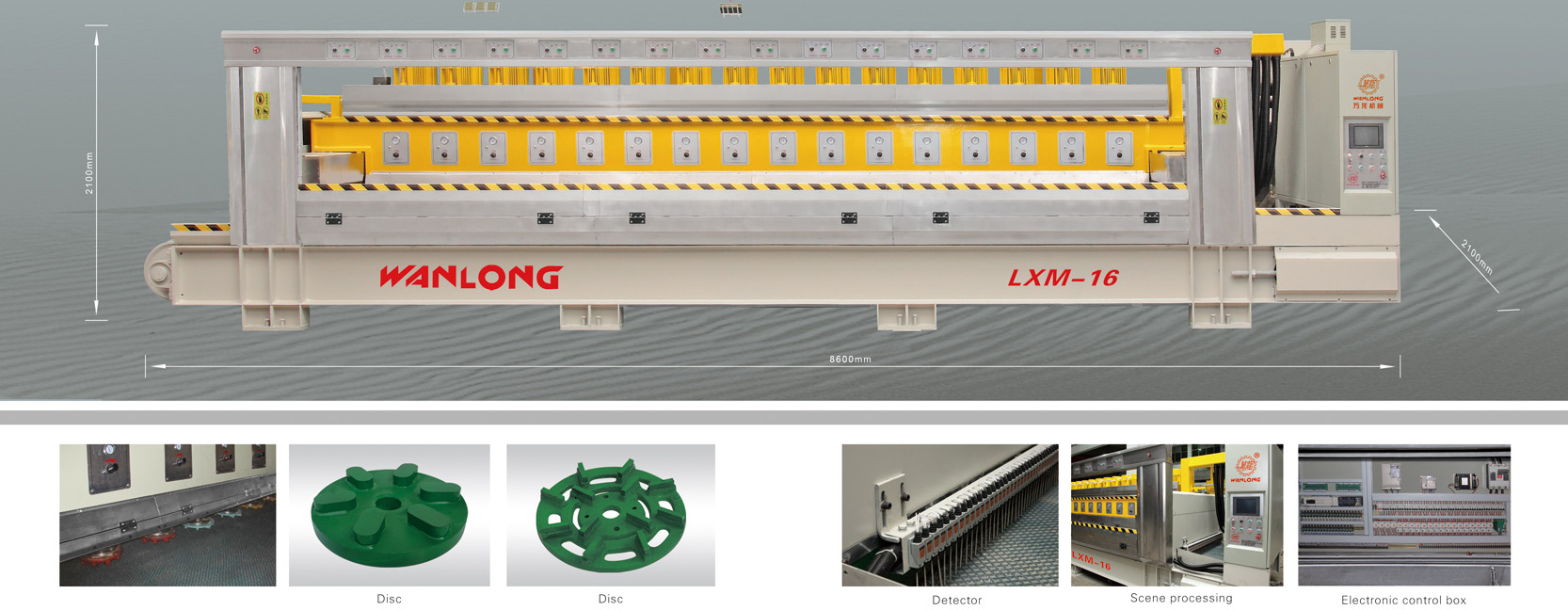

LXM-16 Fully-automatic Polishing Machine

Product Features:

Applicable for polishing the surface of granite slabs and tiles
Applicable for polishing the surface of granite slabs and tiles.
Automatic polishing machine of newly design, which absorbs the most advanced technology of granite polishing and has created several patent technologies.
Superior material, reasonable structure, completed processing technique, stable performance, high efficiency and energy saving.
Electric parts are of worldwide brand, PLC control system and friendly human -machine interface via LCD to achieve computerized control.
Automatically detect the slab profile by laser scanning device.
Sensitive collision avoidance of polishing head.
    LXM-6 LXM-8 LXM-12 LXM-14 LXM-15 LXM-16
Polishing Heads number (optional) pc 6 8 12 14 15 16
Working width (optional) mm 500-1250 500-1250 500-1250 500-1250 500-1250 500-1250
Thickness mm 15-50 15-50 15-50 15-50 15-50 15-50
Air Consumption m³/h \ \ 14 19 24 29
Main motor power KW 7.5 7.5 7.5 7.5 7.5 7.5
Dimensions (L x W x H) mm 6000*2100*2100 6700*2100*2100 7100*2100*2100 7800*2100*2100 8150*2100*2100 8600*2100*2100
Main motor power KW 87.5 95 102.5 110 117.5 125
Total weipht m³/h 10 14 18 22 26 30
