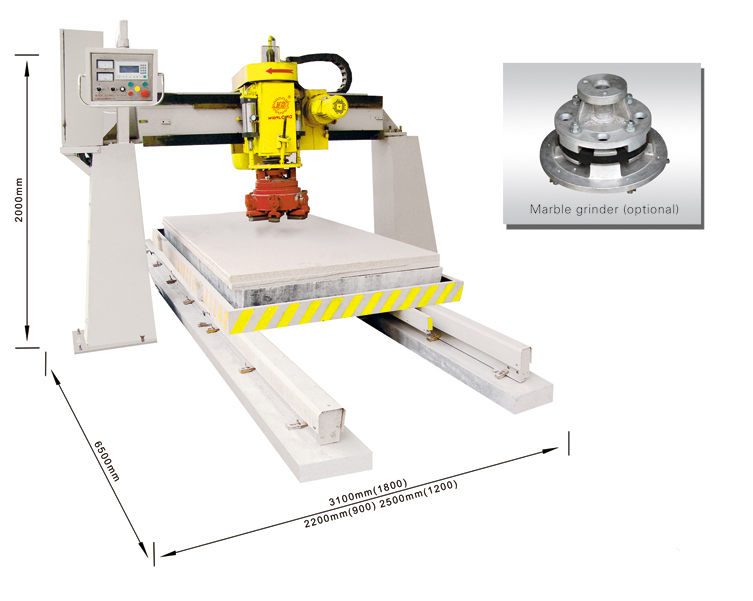

QDM900-1800 Bridge Single Head Automatic Polisher
Product Features：
ODM900-1800 type Bridge Single Head Automatic Polisher is used to grind and polish stone slab Same machine could be used for granite or mable polishing, but differences on polishing head to be installed
| LXM-6 | LXM-8 | LXM-12 | ||
|---|---|---|---|---|
| R.P.M of polishing head | r/min | 560 | 560 | 560 |
| Traverse feeding speed of polishing head | mm/min | 0-5600 | 0-5600 | 0-5600 |
| Lengthways feeding speed of Polishing head | mm/min | 0-4300 | 0-4300 | 0-4300 |
| Supplied by User | MPa | 0.35-0.5 | 0.35-0.5 | 0.35-0.5 |
| Required air source | m³/min | 0.15-0.30 | 0.15-0.30 | 0.15-0.30 |
| Output | m²/h | 2-2.5 | 2.5-3 | 3-3.5 |
| Max. polishing size (L x W x H) | mm | 3000*900*120 | 3000*1200*120 | 3000*1800*120 |
| Overall dimensions (L x W x H) | mm | 6500*2200*2000 | 6500*2500*2000 | 6500*3100*2000 |
| Main motor power | KW | 15 | 15 | 15 |
| Water consumption | m³/h | 4 | 4 | 4 |
| Approximate weight | kg | 2000 | 2500 | 3000 |
