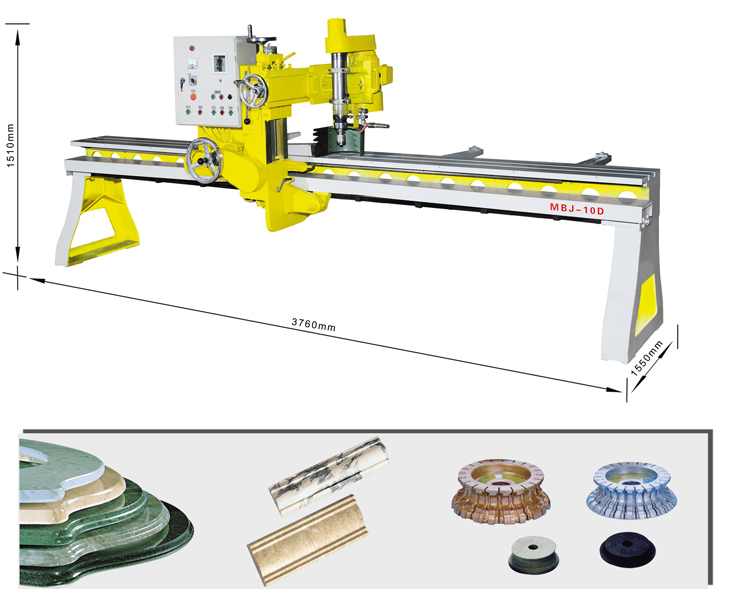

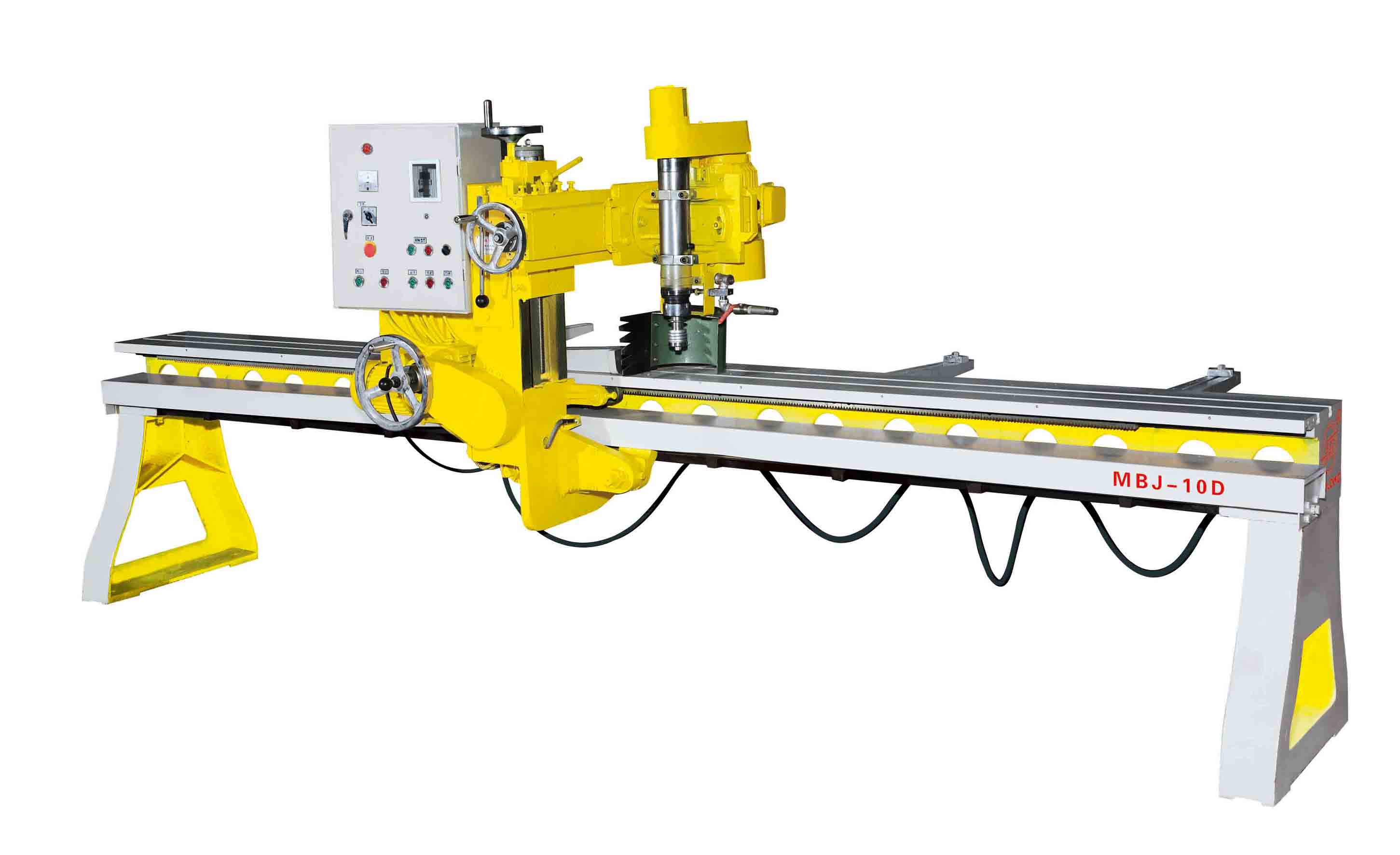

MBJ-10D Edge Polishing Machine

Product Features:

MBJ-10D Edge Polishing Machine adopts complete-sealed oil-immersed type of compound sliding guider that prolong the life of machine Its wide working table is in double T-shape, which is convenient in processing MBJ-10D is very pratical machine for edge profiling and polishing
Main motor power KW 4/3.3
Drilling diameter mm 6-150
Grinding head rotate speed rpm 1900-3800
Grinding head rotate angle ±8°
Automatic running speed m/min 0.2-4
Processing length mm ≤3000
Max. shaping width mm 600
Material thickness mm ≤150
Overall dimensions (L x W x H) mm 3760*1550*1510
Water consumption m³/h 2
Approximate weight Kg 1500
