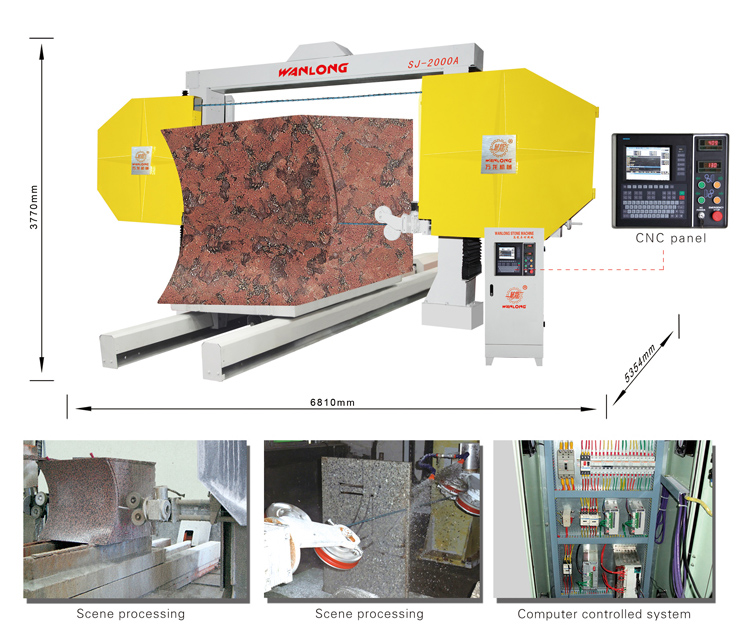

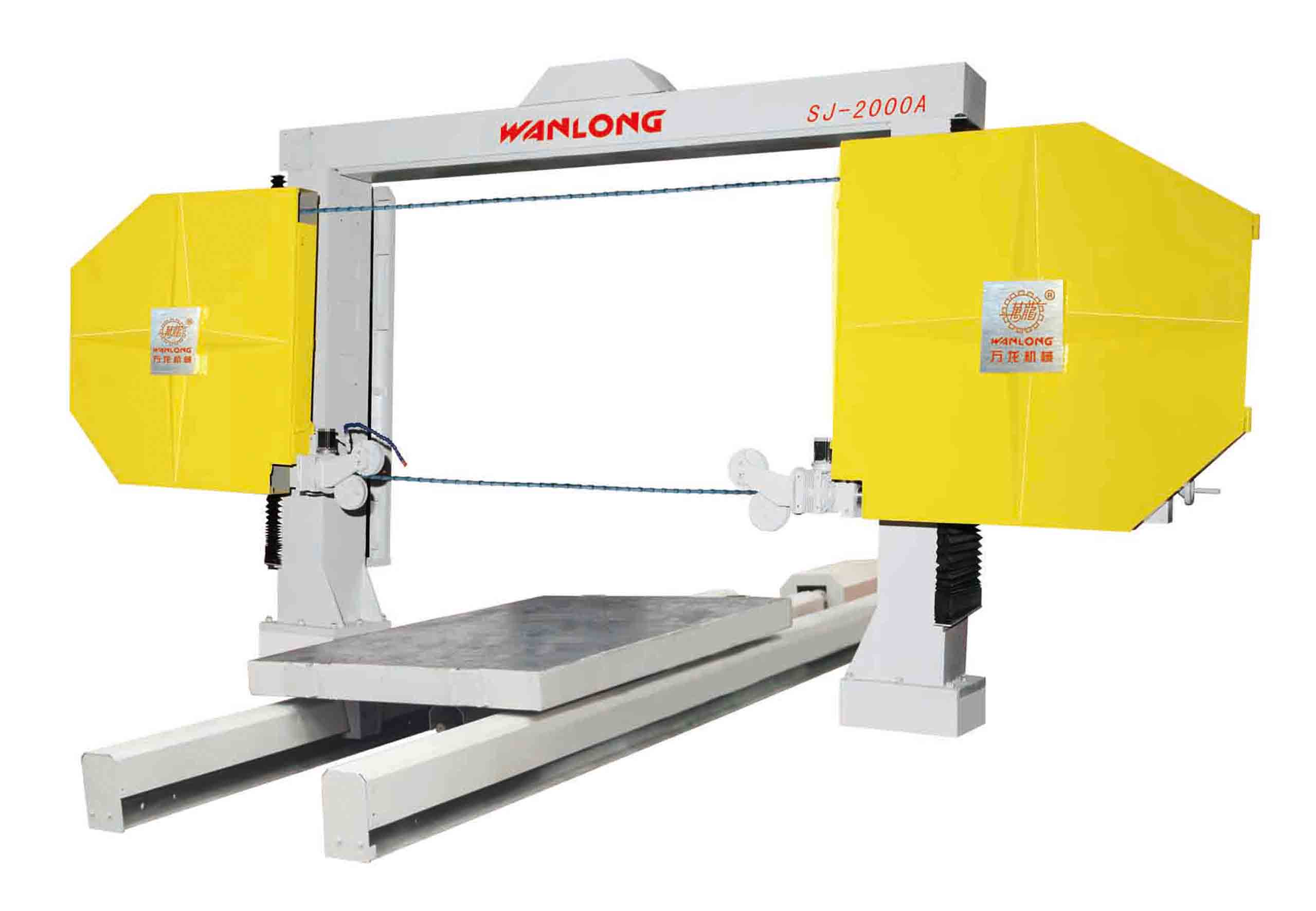

SJ-2000A Numerical Control Wire Saw

Product Features:

This machine has an independent guide rail on each of the four columns The flywheel elevates and lowers along these guide rails The flywheel works stably, which improves the service life of the diamond wire saw Flywheel tension has a stable, constant stretch mode to enhance cutting accuracy CNC system makes the man-machine interface easy and flexible Diverse, complex,2-dimensional surfaces can be processed Guide wheel uses a four-layer sealed protection system to greatly improve cutting accuracy The linear cutting speed can be adjusted according to different cutting requirements The protective cover is waterproof and highly durable
    SJ-2000A
Diameter of diamond Wire mm 8.6-10.8
Wire length mm 14800
Table dimensions (L x W) mm 2000*1300
Max. cutting size (L x W x H) mm 2500*2000*1500
Overall dimensions (L x W x H) mm 6810*5354*3700
Main motor powor KW 7.5
Water consumption m³/h 6
Approximate weight Kg 7500
